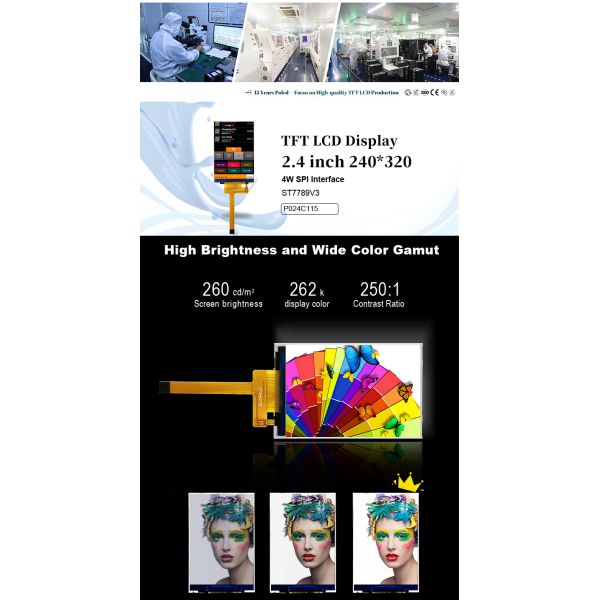

Polcd 260 Nit HD TFT Display 240X320 4 Wire SPI interface 2.4 Inch Tft Lcd

Brand Name : Polcd

Model Number : P024C115

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Size (inch) : 2.4

Resolution : 240*320

Brightness (cd/m²) : 260

Interface : 4 Wire SPI

Driver Ic : ST7789V3

Contact Now

What can we expect from this one? Before this question it is better to know some information about this HD TFT Display. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 260 nits allow this lcd to work well indoors.


Parameter:

Model P024C115
Screen Size 2.4 inch diagonal
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 51(H)x153(V)um
Pins 10 Pins
Outline Dimension 42.72x60.26x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 250:1
Surface treatment ――
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V3
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V3 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

Polcd 260 Nit HD TFT Display 240X320 4 Wire SPI interface 2.4 Inch Tft Lcd

Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
